Electrofusion Equipment - Ritmo

Ritmo Brand Processor - Model Elecktra Light
Working Range 1/2" to 6" IPS (120 V)
Connectors 4,0 mm, 4,7 mm
Carrying Case, Manual Scraper and Pen Scanner
Common Stock Item in Iowa Location

Ritmo Brand Processor - Model Elecktra 500
Working Range 1/2" to 18" IPS (120 V)
Connectors 4,0 mm, 4,7 mm
Transport Case, Manual Scraper and Laser Scanner
Special Order Item – Typically 3-5 Business Days Lead Time (Ships from Ritmo)

Ritmo Brand Processor - Model Elecktra 1000
Working Range 1/2" to 36" DIPS (120 V)
Connectors 4,0 mm, 4,7 mm
Transport Case, Manual Scraper and Laser Scanner
Special Order Item – Typically 3-5 Business Days Lead Time (Ships from Ritmo)

Ritmo Brand Turbo Scrapers are for pipes and fittings ranging from Ø 20 to 63 mm SDR 6 to 11.
The rotating tool allows fast and precise scraping, without defects.
Its blades also allow the perfect facing of the pipe ends which have been roughly cut due to a situation which makes the use of a pipe cutter difficult, like narrow spaces.

Six different sizes of the TURBO are available. TURBO must be used with a cordless driver.

¾” IPS - Special Order Item
1” IPS - Special Order Item
1-1/4” IPS - Common Stock Item in Iowa Location
1-1/2” IPS - Special Order Item
2” IPS - Common Stock Item in Iowa Location

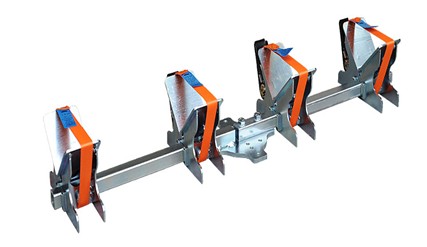

ALIGNER ECO 63 – 180
- Pipe size 2" IPS to 6" DIPS (63mm ÷ 180 mm)
- 4 Fixed Positions – inline,45,90 & Tee
- Weight 16.5lbs (2 Axes Version)
- Weight 22lbs (3 Axes Version)
- By Request - 3rd axle needed for welding “Tees”

Aligner 125-500
- Pipe size 4" IPS to 20" IPS (125mm ÷ 500 mm)
- Weight 83.5lbs (2 Axes Version)
- Weight 114.5lbs (3 Axes Version)
- By Request - 3rd axle needed for welding “Tees”

Aligner 20-63
- Pipe size ½" IPS to 2" IPS (20mm ÷ 63 mm)
- 3 Fixed Positions – Inline,45,90
- Weight 8.6 lbs.

Aligner 160
- Pipe size 2" IPS to 5" IPS (63mm ÷ 160 mm)
- 3 Fixed Positions – Inline,45,90
- Weight 20 lbs.
- By Request - 3rd axle needed for welding “Tees”

RTC 160
- Working range external: Ø 2" IPS to 6" IPS
- Mandrel device to cover all working diameter
- Rotating arm with a blade supported
- Device designed to maintain constant thickness of the continuous chip

RTC 315
- Working range external: Ø 3" IPS to 12" IPS
- Mandrel device to cover all working diameter
- Rotating arm with a blade supported
- Device designed to maintain constant thickness of the continuous chip

RTC 710
- Working range external: Ø 14" IPS to 28" IPS
- Mandrel device to cover all working diameter
- Rotating arm with a blade supported
- Device designed to maintain constant thickness of the continuous chip
