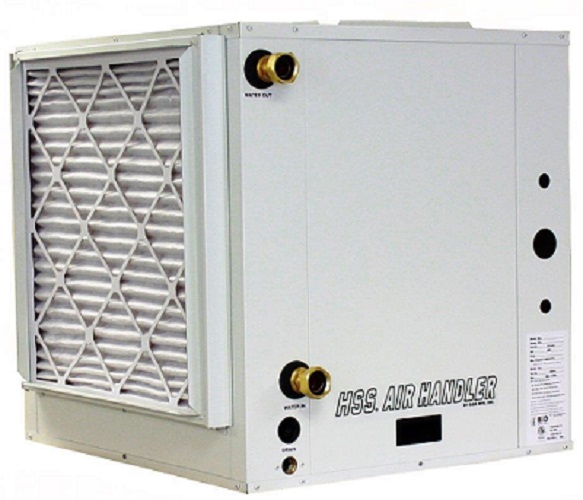

Air Handler

B&D Lab Tested with Time Tested Components for Reliable Performance
· 5 Year Warranty on all Components
· Small compact cabinet with heavy gauge steel with a durable ArmorGuard™ baked on Polyester finish.
· Polyethylene drain pan that will not rust or corrode with 3/4” primary and 3/4” secondary ports.

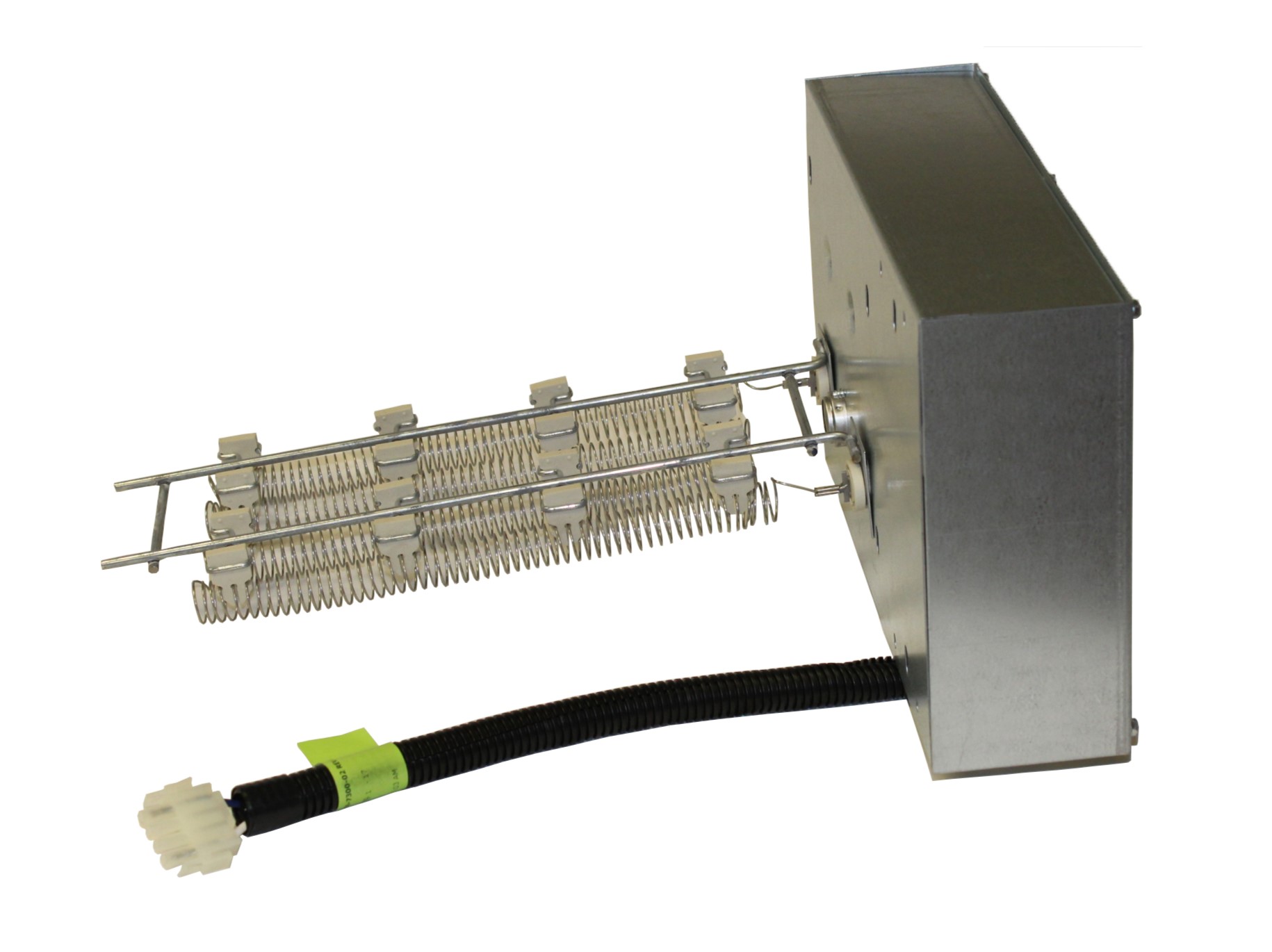

· Emergency electric heat strip of 5kw, 10kw, or 15kw is factory installed *includes a circuit breaker disconnect above 5kw
· Easy installation to add Electric Back-up Heat Strip to all units ordered without Electric Back-up Heat Strip (Plug & Play Design)
· The motors are single phase, 240V, permanent magnet, continuous run, brushless ECM, 4 speed, programmed smart motors and are
also field adjustable.
· The 9” (1 ton & 2 ton), 10” (3 ton & 4 ton) and 12” (5 ton) diameter blowers are direct drive, centrifugal and statically and dynamically balanced for smooth, quiet running.

· Replacement Coils - Coil Only Ships with Copper Outlets
· Replacement Coils - With Swivels Ships with Factory Swivels Installed

· Timer Boards
· Main Relay Boards
· Transformers

· Replacement Merv 8 Filters

· Swivel Gaskets

· Add-on Heat Strip Packages to Up Flow/Down Flow Units
· kW Limit Switches
· kW Relay Switches

· Motor Brackets
· Replacement Blower Motors
· Replacement Blower Housings
